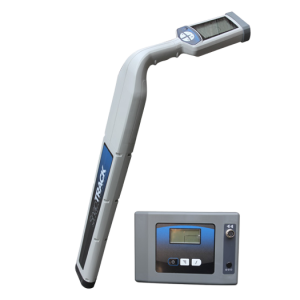

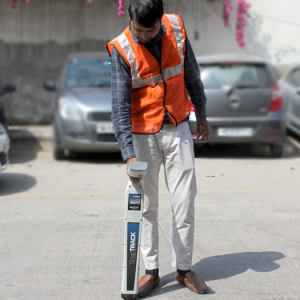

STLOC3 Buried Pipe Cable Locating Kit
Stanone Pipe Cable Locating equipment are for locating, avoidance & route tracing of buried metallic utilities with ease of operation
The STLOC3 is a proven instrument for locating and route tracing of utilities in the most demanding of locating environments
The 3 Watt transmitter when used with the Pathfinder receiver provides the operator an economical & capable locating kit for general cable detection & route tracing.
Frequency Options: Upto 13 user configurable frequency options from 512 Hz to 476.527kHz.
Visual & Audio Controls: The Pathfinder transmitter provides easy to use push buttons with a visual LCD Display and audio feedback for Frequency selection, Output Signal level control etc
Multimeter Functions: The transmitter can provide information on Relative resistance, Volts, Current etc.
Power Supply: The Pathfinder transmitter is provided with built in rechargeable Lithium ion batteries as standard and an external charger eliminating the need for replacement of batteries, saving cost and increasing operator efficiency.
STLOC3 Buried Pipe Cable locators are designed and manufactured to make utility locating as accurate as you need and simple enough to allow usage by any level of operator.

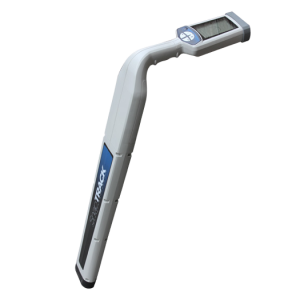

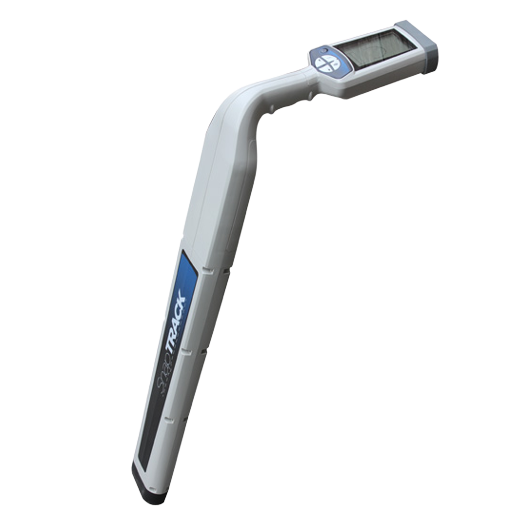

Pathï¬nder STLOC3 Precision Pipe Cable Locating Receiver, Technical Speciï¬cations:
|
Parameters |
STLOC3 |
|
Available Operating Frequencies |
Upto 13 active frequencies: 512Hz, 640Hz, dFF, 815Hz, 4Hz, 8Hz, |
|
Passive Modes |
50Hz & 60Hz Live Sound; Radio Frequency & Rectiï¬ed CP |
|
Antenna Mode |
Simultaneous peak/null (dual horizontal antennas & vertical antenna), pin-point peak (dual horizontal ectional guidance, peak (single horizontal antenna) & null (single vertical antenna) |
|
Display Indicators |
Backlit segmented LCD bar graph, battery condition, continuous mode signal strength, depth measurement, line orientation, left /right line guidance, operating mode, volume level & function indicators |
|
Navigation features |
Left Right Arrow, Compass Mode for Orientation, for cable Route & Identiï¬cation |
|
Push Button Selection |
5 Buttons for Power, Frequency, Mode selection, Depth, Gain or Up & Down |
|
Audio Indication |
Variable pitch & LiveSound 4 volume selections including mute |
|
Additional guidance indication |
Vibrating handle |
|
Current Measurement |
Display indicates relative current |
|
Display |
Large LCD Display, Backlit, (4” Diagonal, 2.5” x 3.1”) |
|
Power Source |
6 "C" batteries (Optional Rechargeable) |
|
Battery Life |
Continuous: 30 hours; Intermittent: 82 hours |
|
Signal Strength |
LCD bar graph, absolute signal strength 0-999 |
|
Gain Control |
Manual gain adjustment & automatic centering |
|
Dynamic Range |
126 dB |
|
Depth Measurement |
DIGITAL: 3-digit LCD readout .02m-10.6m | Optional: 20m MANUAL: 45o triangulation method |
|
Units |
Metric / Imperial, based on user selection |
|
Live Measurement |
Depth & Current, simultaneous at user option |
|
Operating Temperature |
-20º C to +55º C |
|
Dimensions |
77cm x 24cm |
|
Weight |
1.9 kg ± 0.1 kg |
|
Environmental |
IP65 |
|
Optional features*: |
|
|
Datalogging |
>=10000 datalogs (2GB SD Card) or higher |
|
GPS |
Breadcrumb data captured automatically every 7 seconds. Additionally, Speciï¬c locations can be logged based on user selection. |
|
Communication |
2GB Or higher SD Card, Mini USB Port |
|
Wireless Communication |
Bluetooth |
|
Optional feature** |
Pathlink: enables the user to remotely control the transmitter using the receiver. |
*&** selection of optional features will result in model change.

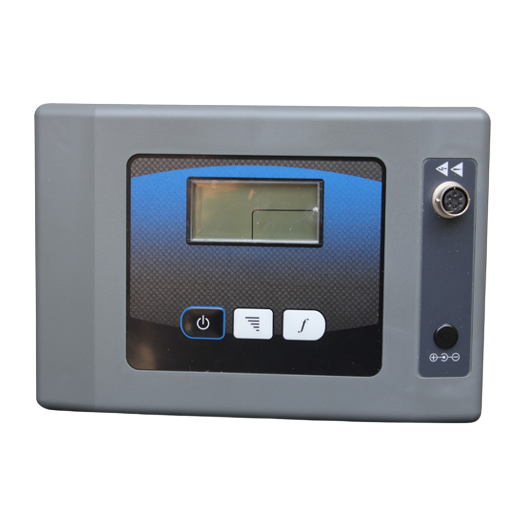

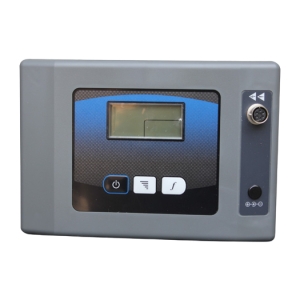

STLOC3 Transmitter Technical Speciï¬cations:
|
Model Options |
SnapTrack |
|
Max Output power |
3W |
|
Active line frequencies |
Up to 16 user conï¬gurable frequencies: 1kHz, 8kHz, 9kHz, 33kHz, 65kHz, 8.2kHz, 83kHz, 116kHz, 118kHz, 200kHz, 478kHz,273Hz, 512Hz, 577Hz, 640Hz, dFF, 815Hz 3 Dual frequencies: 815Hz/33kHz, 815Hz /82kHz, 8Hz/82kHz |
|
Load matching |
Automatic 5 to 25000 ohms |
|
Display |
LCD |
|
Indicators |
AC load assistance measurement, relative ohms, voltage, live voltage output, current output, power level, frequency, mode, battery indication alert, low battery indicator audio/visual with |
|
Output power setting |
5 levels, 0.2 to 3 Watt (<44kHz) |
|
High Power Output Mode |
No |
|
DFF mode |
Yes, DFF Mode can be used for sheath fault locating if earth return probe (A frame is purchased separately) |
|
Power source |
Alkaline battery 8 x “C” Cells |
|
Operating time |
Continuous: 8 ~15 hours depending on load, frequency, power setting Intermittent: >=30 hours |
|
Weight |
≤ 1.5 kG |
|
Size |
21 cm x 15 cm x 6 cm |
|
Operating Temperature |
-20°C to 55°C |
|
Environmental rating |
IP65 |
