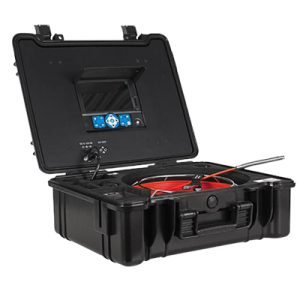

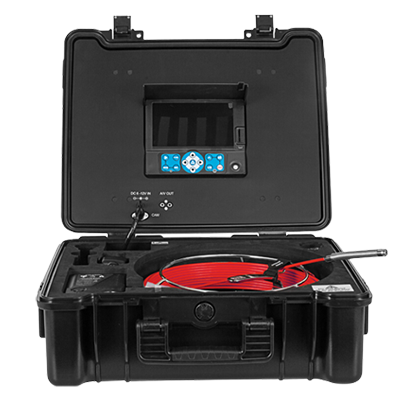

IPC1 is a drain/pipe Inspection camera that comes with a mini 14mm camera head, a 7inch LCD monitor with DVR, a 20m rotatable cable reel with capability of being pushed into a 40mm dia. pipe and pass through 90 degree bend in a pipe for inspection of small pipes. It's widely used in video inspection of plumbing pipes, Drains, Duct, chimney, machinery and In-building ducting inspection. Suitable for smaller network of pipes.
| Suitable for Pipe, Inner dia (mm) | |
| Traverse through 90 d bends of dia | 35mm or higher |

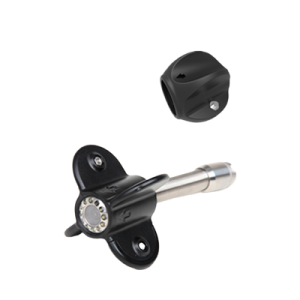

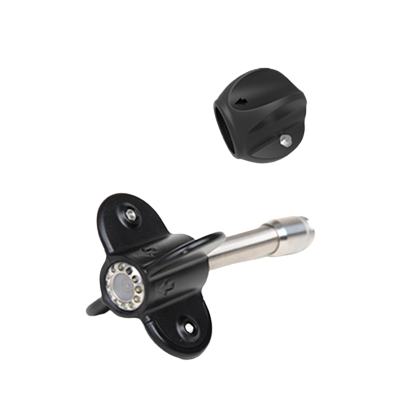

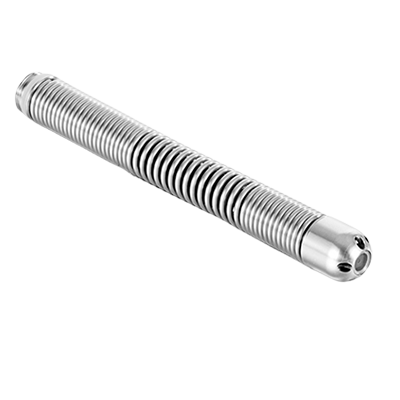

| Camera Head | |
| Self-leveling Camera | No |
| camera Head Size | Ø14mm* 14.5mm (Main body) |
| Camera Type | 1/4" CMOS, 400 TV- lines |
| View Angle | 90 ÌŠ |
| Focus Distance | 10cm |
| Front Lens | Sapphire Glass |
| Waterproof, Environmental Rating | IP68 Up to 10m under water |
| LED’s | 4 High bright LEDs |
| Camera Material | Stainless Steel #304 |
| Roller Skid | N/A |

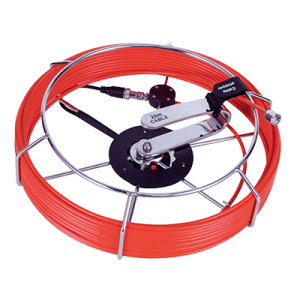

| Cable Wheel | |
| Rod Material | Fiberglass rod |
| Wheel Material | Stainless steel wheel |
| Rod Length options | 20m |
| Distance meter count | Built in encoder |
| Rotation (on screen display) | Slip Ring |
| Rod Diameter | Ø4.8mm |
| LCD Display and DVR | |
| LCD Size | 7- inch 16:9 Super bright HD color LCD screen |
| LCD Resolution | 800 x 480 pixel |
| Mirror and Flip | Support image mirror and flip |
| Video Resolution | PAL 720 x 576 25fps Max. |
| Video Encoding | H.264 |
| Wireless Keyboard (For Data entry) | No |
| Monitor Installation | N/A |
| Photograph / Snapshot | Yes |
| Video & Audio Recording | Yes |
| Output | TV and Audio Output |
| External Memory | SD Card (up to 32GB) |
| Data Output | USB 2.0 to PC |
| LED driver | Built in dimmer |
| Playback | Photo, Video and Audio |
| Language | English + 8 Languages |
| General Characteristic | |
| Power Supply | 12V DC charger |
| Battery Capacity | Li-on battery, 6600mAH, 7.4V |
| Operating Time | 8 hours |
| Power Adaptor | Input: 110VAC~240V AC, Output: 12V DC 1200mA |
| Gross Dimension & Weight | 53.5 x 23 x 47cms & 10kg |
