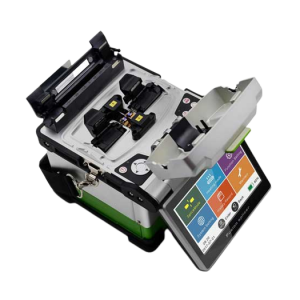

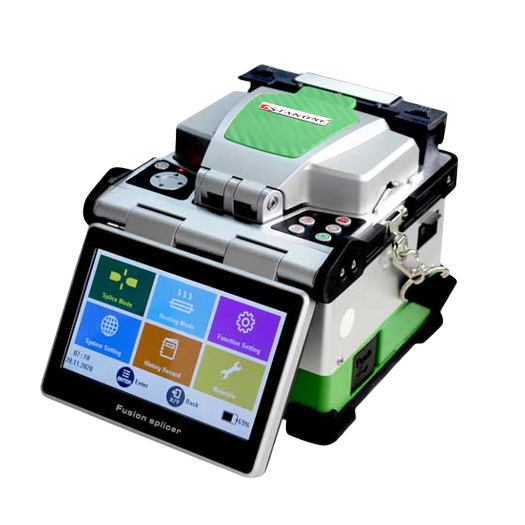

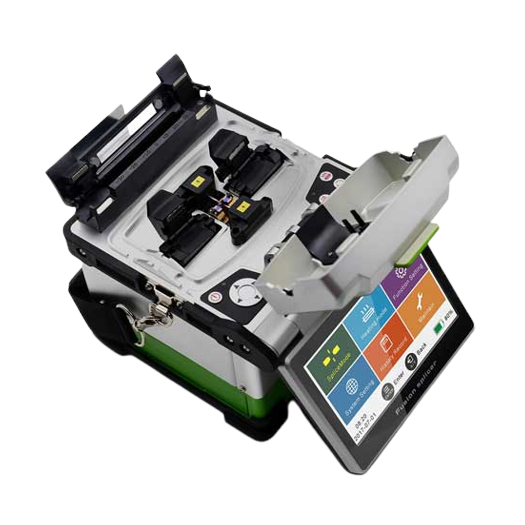

Rugged splicing machine with an auto heater and integrated cooling tray with smart GUI interface, LCD display and X and Y views for efficient splicing

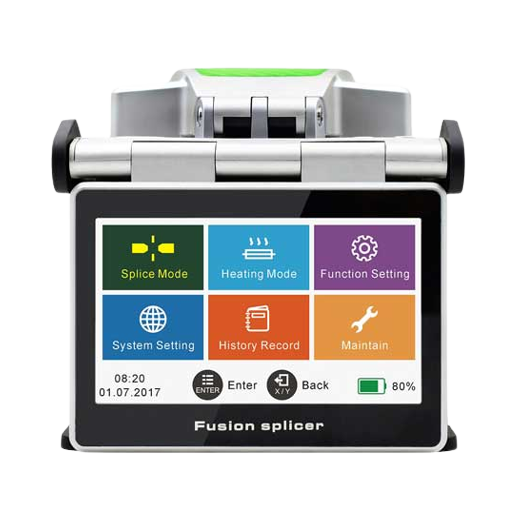

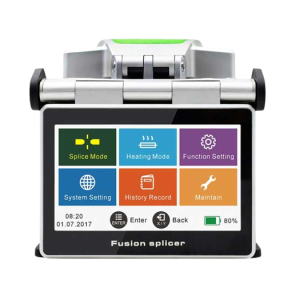

L3 Fusion Splicer is a rugged splicing machine with an auto heater and integrated cooling tray. Fusion Splicer lemon 3 provides a smart GUI interface, LCD display and X and Y views for efficient splicing.
With a 8s single mode fiber splicing, the L3 optical fiber splicer is an ideal instrument for those who want the best instrument for their fiber maintenance.
Ideal for use in Industrial plants, Campus networks, Telecom and Railway network project and maintenance
| Applicable Fibers | SM, MM, DS, NZDS, EDF |
| Fiber Aligning Method | Core alignment |
| Average Splicing Loss | 0.02dB (SM),0.01dB (MM),0.04dB (NZDS),0.04dB (EDF) |
| Splicing Mode | Auto, Manual & Half Auto |
| Splicing Setting | 100 groups |
| Splicing Time | Typical 8s with standard SM fiber |
| Heating Time | 44792 |
| Electrode Life | 5000 Splices |
| Tension Test | 2.0N (Standard) |
| Language | English |
| Fiber Viewing Magnification | X/Y:180 times, X or Y:360times |
| Data Storage | 10000 groups |
| Data Connectivity | USB 2.0 |
| Protection sleeve length | 40mm and 60mm |
| Display | 5” color LCD display |
| Power Supply | Li-ion battery or AC/DC input:13.5V |
| Battery Capacity | Typical 200 cycles (splicing and heating) per battery charge |
| Operating Temperature/ Relative Humidity | -10°C to ~+ 50°C / 0~95% RH |
| Size (mm) | 164 x 141 x 138 |
| Weight (kg) | 1.83 |
