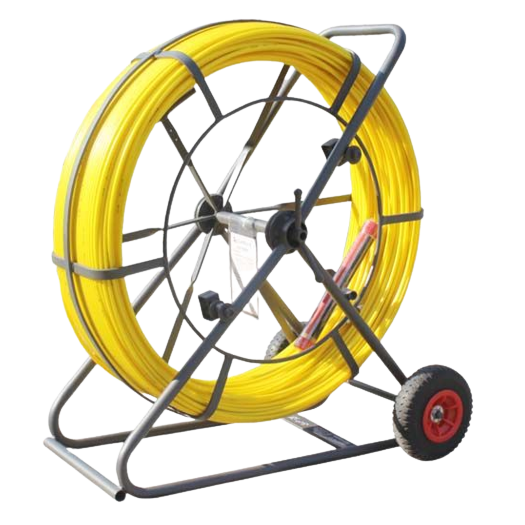

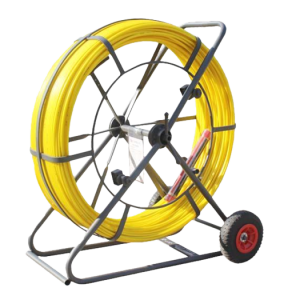

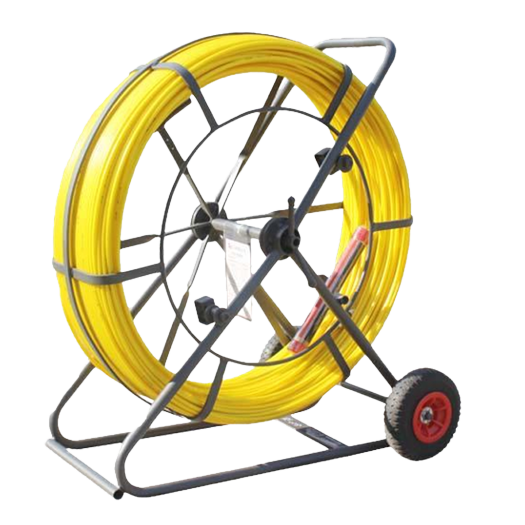

The Cable Tiger Maxi Duct Rodder is ideal for installation of optical fiber telecom cables in buried/underground HDPE ducts up to 300 meters in metro and congested city environments. The Cabletiger maxi duct rodder is also the most widely used equipment in OFC maintenance & where cable blowing method is not feasible.
Cabletiger is a professional heavy duty cable pulling device based on 9mm dia. Composite fiberglass rod. Provided in galvanized metal frame with wheels & integral brake & M12 threaded rod ends at both ends.
Available in 200m and 300m length options.
| Length Options | 200m(650') or 300m(1000') |
| Dimension | 33"x20"x37" Maxi Frame "B" Type for 120~200m |
| 43"x20"x44" Super Maxi Frame "A" Type for 300 m | |
| Rod Dia. | 9.0mm (Nominal) |
| Product Supply Includes | Cable Tiger Unit as per length ordered |
| Item Code | ST-CD 200 for 200m & ST-CD 300 for 300m |
