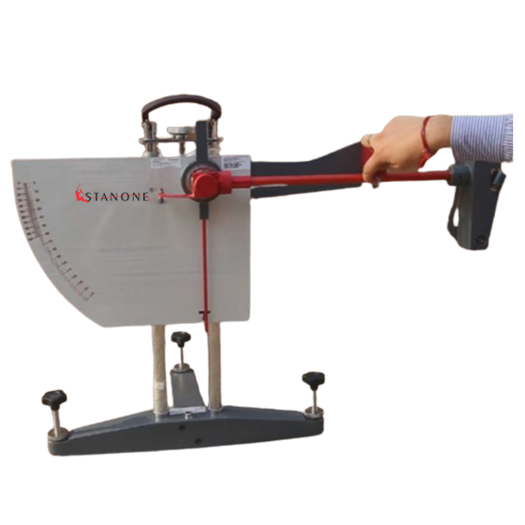

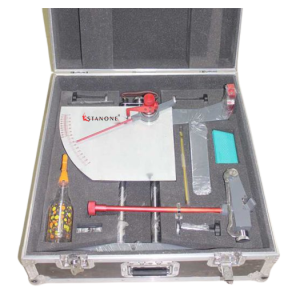

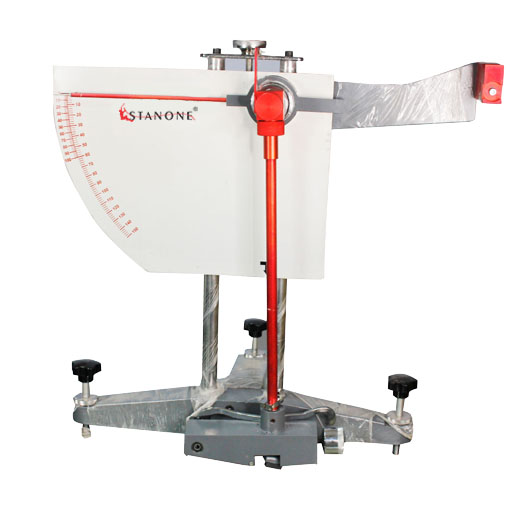

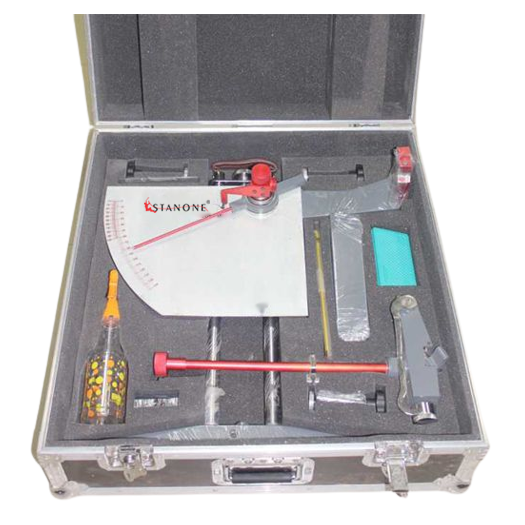

The Portable Skid Resistance and Friction Tester is a direct reading instrument that provides the measure of friction between a skidding tire and wet road/ runway surface. It also determines the friction of asphalt and flooring materials. The Instrument facilitates a road or runway engineer, based on numerical scientific results, information on whether a measure needs to be taken to reducAe skidding. The Portable Skid Resistance Tester has been used all over the world for many years and is probably the most convenient equipment to check skid resistance. The equipment is based on EN 13036-4 standard & conforms to BS EN1097-8:2000, ASTM E303-93, and AS/NZS 4586:1999. It is very compact and can easily be transported in any remote location. It has heavy duty frame construction with adjustable feet on base, and a slider lifting device for height adjustment. The equipment is provided with additional incorporated scale for test on PSV specimen.
| Hardness BS ISO 48:2010 | 55 ± 5, and 96 ± 5 | |||
| Resilience Lupke Rebound Test | BS ISO 4662:2009 | |||
| Temperature °C | 0 10 20 30 40 | |||
| Resilience % | 43 to 49 58 to 65 66 to 73 71 to 77 74 to 79 | |||
